Selection of input control in 5.03 - BRAVO, Well done :)
- ClausT
- Autor
- Offline
- Senior Mitglied
-
- Beiträge: 61
- Thanks: 39
Selection of input control i 5.03 - BRAVO, Well done :)
30 Juni 2020 11:29
Well done on the "Selection of input control", the possibility to select from not only sticks and switches, but also functions etc. BRAVO, well done Jeti Team
I will now retire the LUA script I had as a workaround for function curve on input to Butterfly.
I will now retire the LUA script I had as a workaround for function curve on input to Butterfly.
Bitte Anmelden oder Registrieren um der Konversation beizutreten.
- VOBO
- Offline
- Platinum Mitglied
-
- Beiträge: 537
- Thanks: 135
- ClausT
- Autor
- Offline
- Senior Mitglied
-
- Beiträge: 61
- Thanks: 39
Re: Selection of input control in 5.03 - BRAVO, Well done :)
30 Juni 2020 14:54

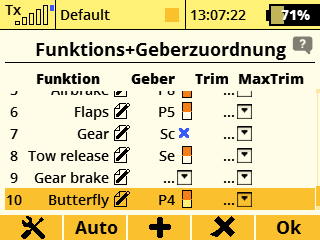

1. Define a new function e.g. "Butterfly" and assign the stick you will control it with e.g. P4.

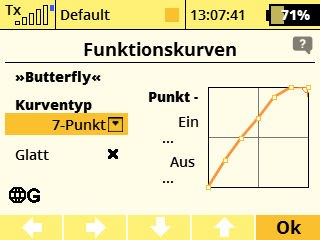

2. Now you can apply a function curve to this function, in this example I have no movement at top of stick = no butterfly applied even if stick isnt all the way forward.

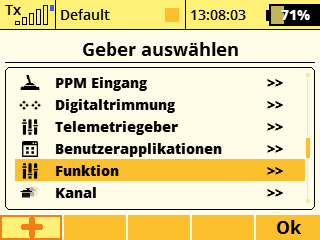

3. Set up Butterfly in normal menu, when selecting Control press + and now you get the new list of available inputs
WIth this update the "Functions" really are at the top level of control, fine tuning via Function curves either global or flight phase specific.
For me it has meant that I could drop several free mixers and a LUA script, making for a simpler setup of otherwise complex models.
2. Now you can apply a function curve to this function, in this example I have no movement at top of stick = no butterfly applied even if stick isnt all the way forward.
3. Set up Butterfly in normal menu, when selecting Control press + and now you get the new list of available inputs
WIth this update the "Functions" really are at the top level of control, fine tuning via Function curves either global or flight phase specific.
For me it has meant that I could drop several free mixers and a LUA script, making for a simpler setup of otherwise complex models.
