MUI 30 with 2 battery

NICATO
Autor
Offline
Neues Mitglied
Beiträge: 6
Thanks: 0

MUI 30 with 2 battery

08 Feb. 2018 20:00

Hi Guys, I'm new owner jeti.
I wanted to ask a question:

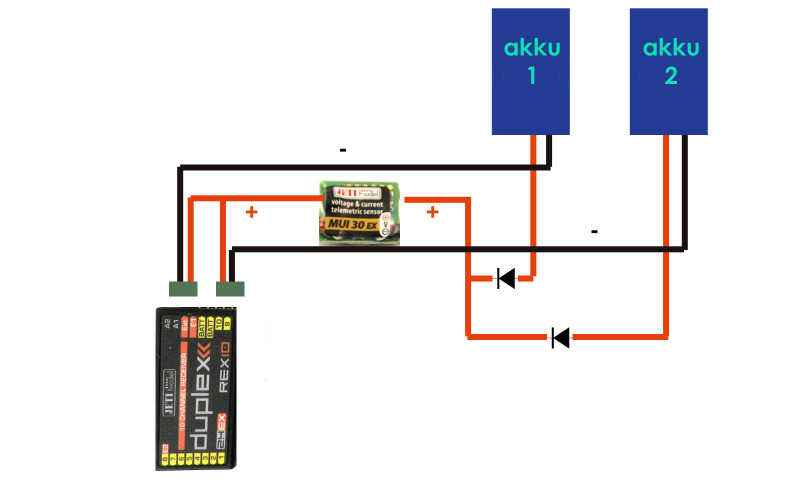

is it possible to use a mui 30 sensor connected as in my attached drawing?

I would like to use 2 batteries to REX reciver, but I would also like to measure the A and the capacity.
I have to take 2 mui 30 or just 1 as my example?

we accept suggestions

thank you all

Nik

Bitte Anmelden oder Registrieren um der Konversation beizutreten.

FuniCapi
Offline
Platinum Mitglied
Beiträge: 1889
Thanks: 930

Re: MUI 30 with 2 battery

09 Feb. 2018 10:44 - 09 Feb. 2018 10:47

This wiring will work.
But you dont know the status of each battery. A voltage measurement is also done by the receiver.

Lukas

Letzte Änderung: 09 Feb. 2018 10:47 von FuniCapi.

Bitte Anmelden oder Registrieren um der Konversation beizutreten.

sunbeam
Offline
Platinum Mitglied
Beiträge: 2843
Thanks: 896

Re: MUI 30 with 2 battery

09 Feb. 2018 11:24

Hi Nick,

both Akkus go to the reciever? As far as I know all "+" and "-" are connected among each other in the reciever, so two Akkus are connected parallel. I would say that in such a parallel circuit you can measure the capacity as in your drawing.

Kind regards, Kai

Bitte Anmelden oder Registrieren um der Konversation beizutreten.

NICATO
Autor
Offline
Neues Mitglied
Beiträge: 6
Thanks: 0

Re: MUI 30 with 2 battery

09 Feb. 2018 17:49

thanks Lukas and Kai.
I want to know only how much has consumed in capacity (total) and how many Ampere is consuming in real time.
Of course, with my wiring, I don't have the capacity of single battery, but the total (1 akku+2 akku)
I knew that the + and - are connected in parallel in Rex.

best regards

Nik
