Max limit on loadimage?
- Jostebo
- Autor
- Offline
- Neues Mitglied
-
- Beiträge: 6
- Thanks: 0
Max limit on loadimage?
02 Jan. 2023 19:41

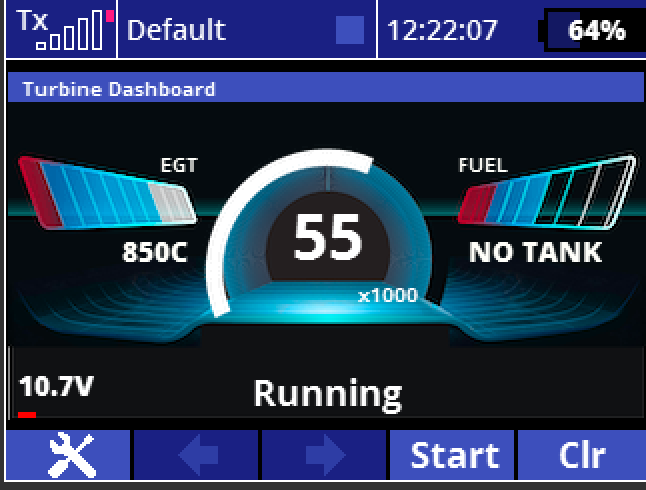

Hi. I am in the final stages of creating a Turbine dashboard. Some of you might have seen my photos and videos from Facebook group as well.
I am facing an issue with the number of images I load during startup. NO error message. I use tiny png images as "icons" to show the RPM gauge / temperature gauge ++.
Some of the images are not showing up in the UI, and its always the last one to be loaded. If I change order, it will be the last one.
PS: It is working fine in Studio, but not on the DS-24.
what is the max number of images that can be loaded using lcd.loadimage command?
What is the max number of Kb that can be loaded for pictures / icons?
I am facing an issue with the number of images I load during startup. NO error message. I use tiny png images as "icons" to show the RPM gauge / temperature gauge ++.
Some of the images are not showing up in the UI, and its always the last one to be loaded. If I change order, it will be the last one.
PS: It is working fine in Studio, but not on the DS-24.
what is the max number of images that can be loaded using lcd.loadimage command?
What is the max number of Kb that can be loaded for pictures / icons?
