Re: GPS-Sensor
28 Dez. 2020 10:41
Hey Tero!
Thanks for getting in touch with this...

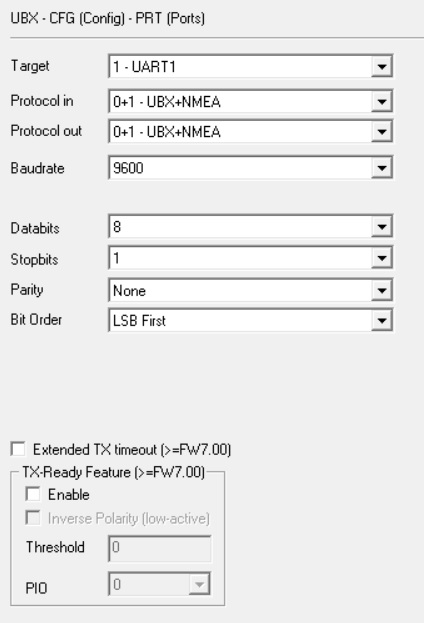

I tried several configurations of the ports in UCenter.
This is what it looks like:
I guess the serial communicatin should be ok with 9600 8N1?
So its all about the protocoll IN and OUT
This are the options:
Any Ideas?
More to config than just the ports?
Greetings
David
Thanks for getting in touch with this...
I tried several configurations of the ports in UCenter.
This is what it looks like:
I guess the serial communicatin should be ok with 9600 8N1?
So its all about the protocoll IN and OUT
This are the options:
Any Ideas?
More to config than just the ports?
Greetings
David
Bitte Anmelden oder Registrieren um der Konversation beizutreten.
- TeroS
-
Autor
- Offline
- Platinum Mitglied
-
- RC-Thoughts
- Beiträge: 527
- Thanks: 370
- paul
-
- Offline
- Junior Mitglied
-
- Beiträge: 36
- Thanks: 11
- TeroS
-
Autor
- Offline
- Platinum Mitglied
-
- RC-Thoughts
- Beiträge: 527
- Thanks: 370
Re: GPS-Sensor
28 Dez. 2020 17:10
Hey kmpec, please try to turn TX/RX around between arduino and BN-220.
This would be the "normal" way to connect;
- GPS TX -> Ardu RX
- GPS RX -> Ardu TX
After reading the interwebs there seems to be quite a lot of BN-220's tha need to be connected like this:
- GPS TX -> Ardu TX
- GPS RX -> Ardu RX
Does not cost anything to test so please do that
This would be the "normal" way to connect;
- GPS TX -> Ardu RX
- GPS RX -> Ardu TX
After reading the interwebs there seems to be quite a lot of BN-220's tha need to be connected like this:
- GPS TX -> Ardu TX
- GPS RX -> Ardu RX
Does not cost anything to test so please do that
